LOTS AOI Light Inspection Lighting

LTS-AOI60-R

LOTS AOI Light Inspection Lighting

Out dia. φ60, Inner Dia. φ20, Height 34mm, 1.7W, RED

LOTS AOI Light Inspection Lighting

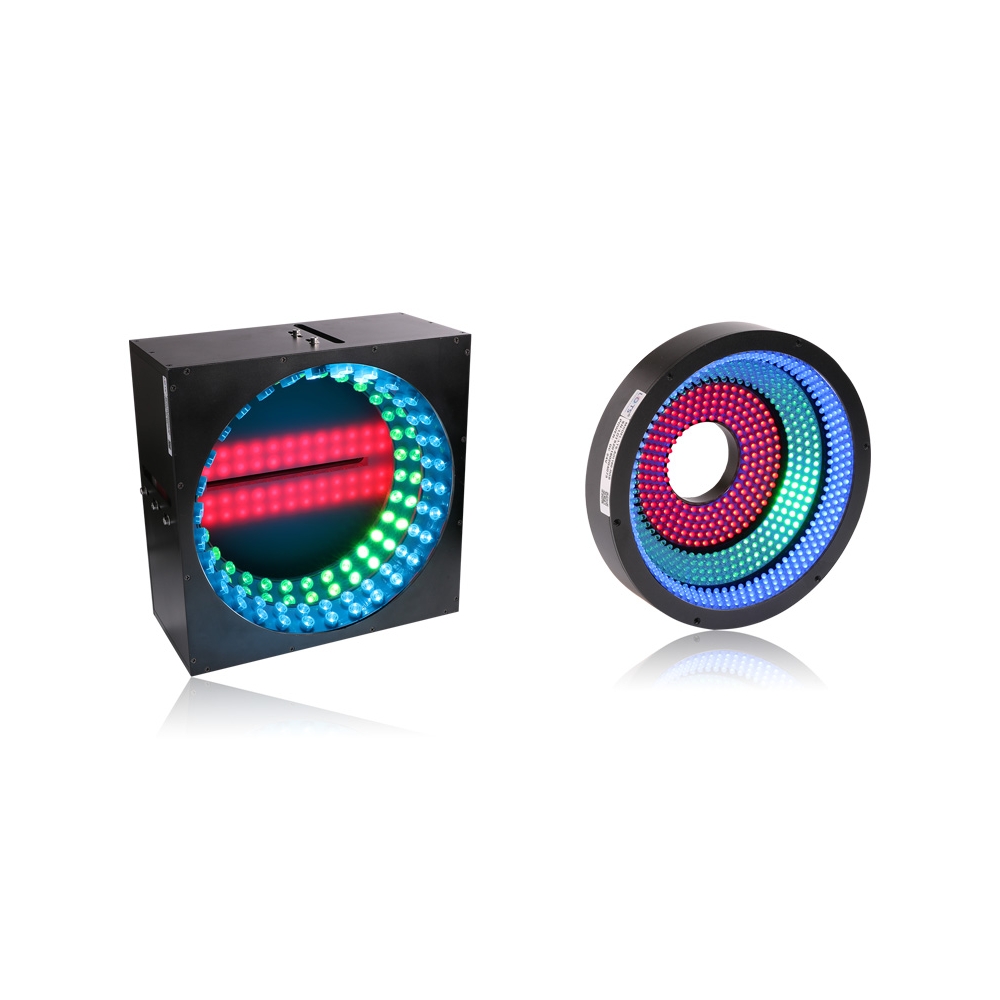

The LED array of AOI light is combined with three colors of red, green and blue. It can illuminate objects in different angles and colors to highlight the 3D information of the object. It specializes in inspection of defects of the PCB boards. It can match with coaxial lights.

Features:
  • Adopted high luminance straight -through LED, equally distribution
  • With multiple angle, can control the luminance independently. Used in various applications
  • Can customized different installation method and lamp beads angle
SKU: LTS-AOI60-R Categories: ,
China TEL: +86-130 0669 9017
Overseas Tel: +86-180 0254 0712
Applications:
  • Mobile glass screen scratch inspection
  • Silicon seal defect inspection
  • PCB tin soldering inspection
  • Battery tin soldering point inspection
Illumination property diagram (LTS-AOI160-RGB model) & Uniformity (Relative irradiance):
Imaging instance: PCB soldering point inspection

Coding rules:

(Use the color circles below to get to the specific variant of the products)

Model Color Dimension Voltage Power
LTS-AOI60-RW Out dia. φ60, Inner Dia. φ20, Height 34mm 24V 1.7W
LTS-AOI80-UV/W / Out dia. φ80, Inner Dia. φ24, Height 22mm 24V 4.8W
LTS-AOI100-RW Out dia. φ100, Inner Dia. φ20, Height 33mm 24V 4.3W
LTS-AOI160-RGB Out dia. φ160, Inner Dia. φ45, Height 55mm 24V 28W
LTS-AOI180-W Out dia. φ180, Inner Dia. φ60, Height 90mm 24V 26W
LTS-AOI275-W Out dia. φ275, Inner Dia. φ160, Height 60mm 24V 61.2W
* UV & IR light can be customized as required.
