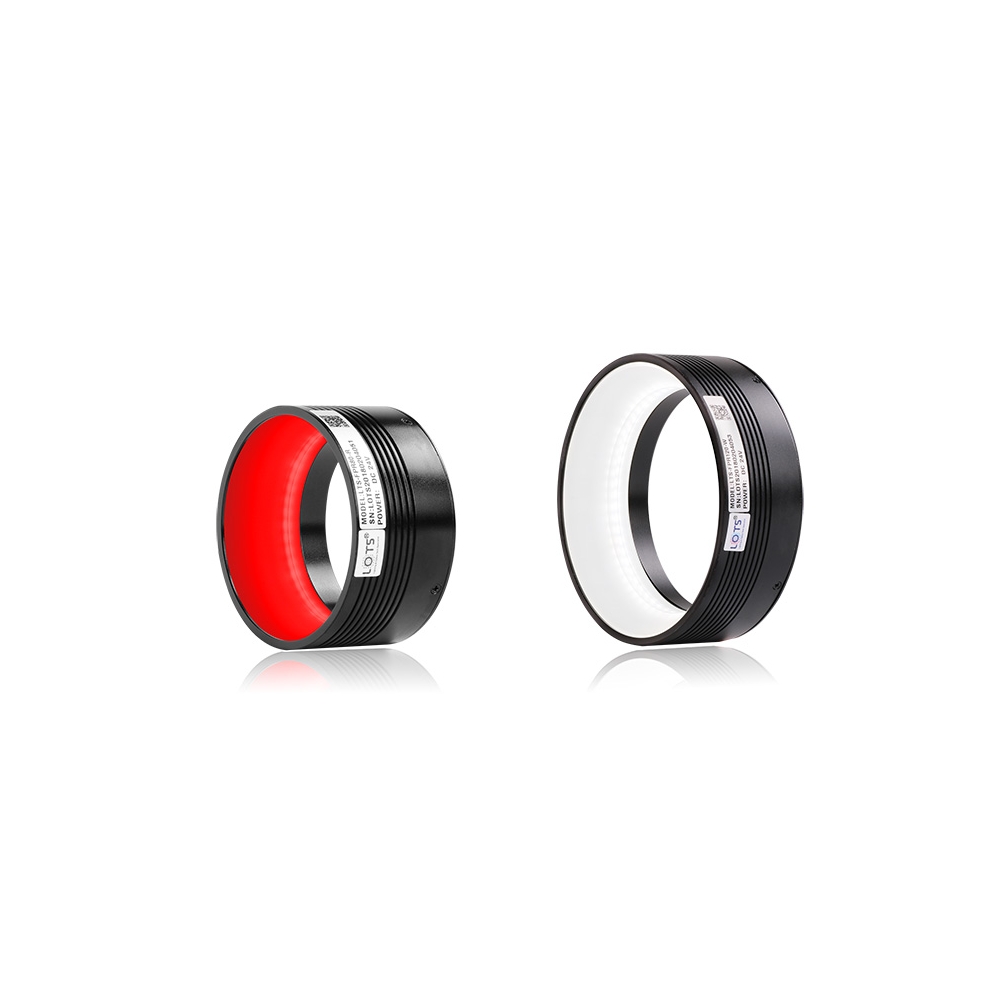

LOTS Low Angle Shadowless Light

LTS-FPR160-R

LOTS Low Angle Shadowless Light

Outer dia. φ160mm, Inner dia. φ133mm, Height 40mm, 24V, 4.1W, RED

LOTS Low Angle Shadowless Light

Ring shape and diffused, soft illumination; even illumination in the large square, without the shadow; ideal for flew or edge detection on reflective surfaces.

Features:
  • Special emitting structure, emitting uniformly
  • Efficient low angle illumination, strengthen surface characteristic
  • Highlight defect contrast
  • Reduce the reflect light or flare
SKU: LTS-FPR160-R Categories: , ,
China TEL: +86-130 0669 9017
Overseas Tel: +86-180 0254 0712
Applications:
  • BGA\QFP position inspection
  • Integrated circuit material strap inspection
  • Connection lead pin pitch & excursion inspection
  • Bottle cap crack inspection
Uniform Distribution (LTS-FPR80-W model) & Uniformity (Relative irradiance):
Imaging instance: packing inspection:

Coding rules:

(Use the color circles below to get to the specific variant of the products)

Model Color Dimension Voltage Power
LTS-FPR80-R/BGW / Outer dia. φ80mm, Inner dia. φ64mm, Height 40mm 24V 1.2W/1.9W
LTS-FPR94-R/BGW / Outer dia. φ94mm, Inner dia. φ16mm, Height 70mm 24V 5.8W/8.6W
LTS-FPR100-R/BGW / Outer dia. φ100mm, Inner dia. φ45mm, Height 42mm 24V 2.2W/3.6W
LTS-FPR120-R/BGW / Outer dia. φ120mm, Inner dia. φ94mm, Height 40mm 24V 3.4W/5.0W
LTS-FPR150-R/BGW / Outer dia. φ150mm, Inner dia. φ80mm, Height 40mm 24V 11.5W/19.2W
LTS-FPR160-R/BGW / Outer dia. φ160mm, Inner dia. φ133mm, Height 40mm 24V 4.1W/6.7W
LTS-FPR180-R/BGW / Outer dia. φ180mm, Inner dia. φ153mm, Height 40mm 24V 5.0W/8.4W
* UV & IR light can be customized as required.
